EC25 Cheese Portion Cutter

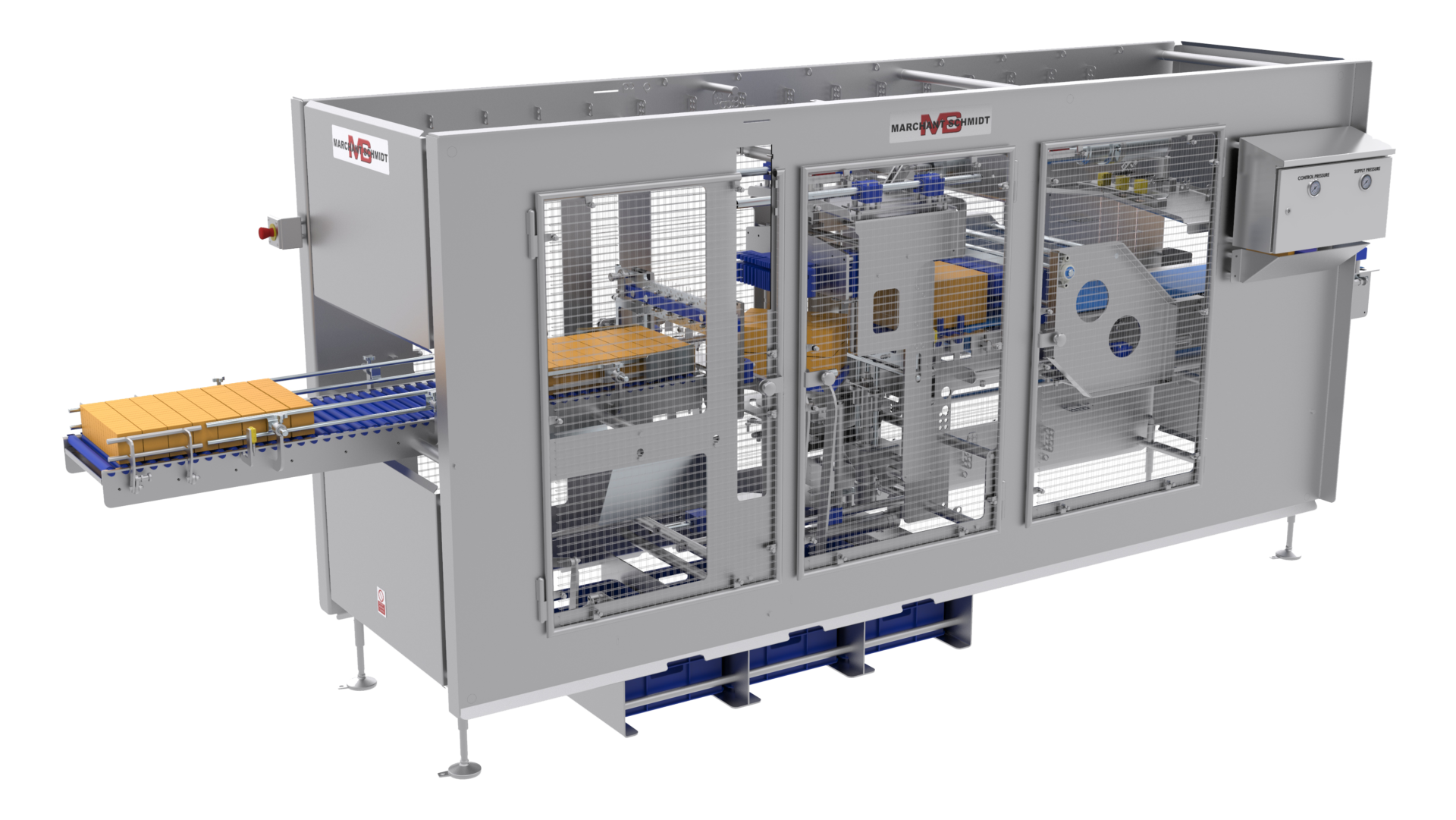

  • 2023 MSE10329001.417

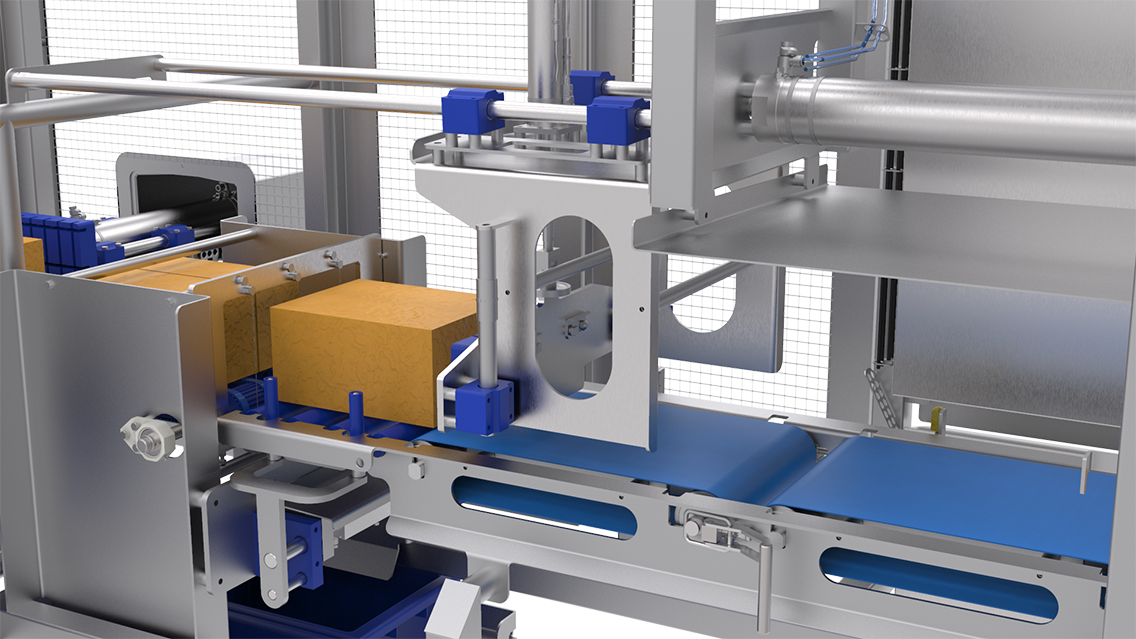

  • EC25 DETAIL SMALL 1

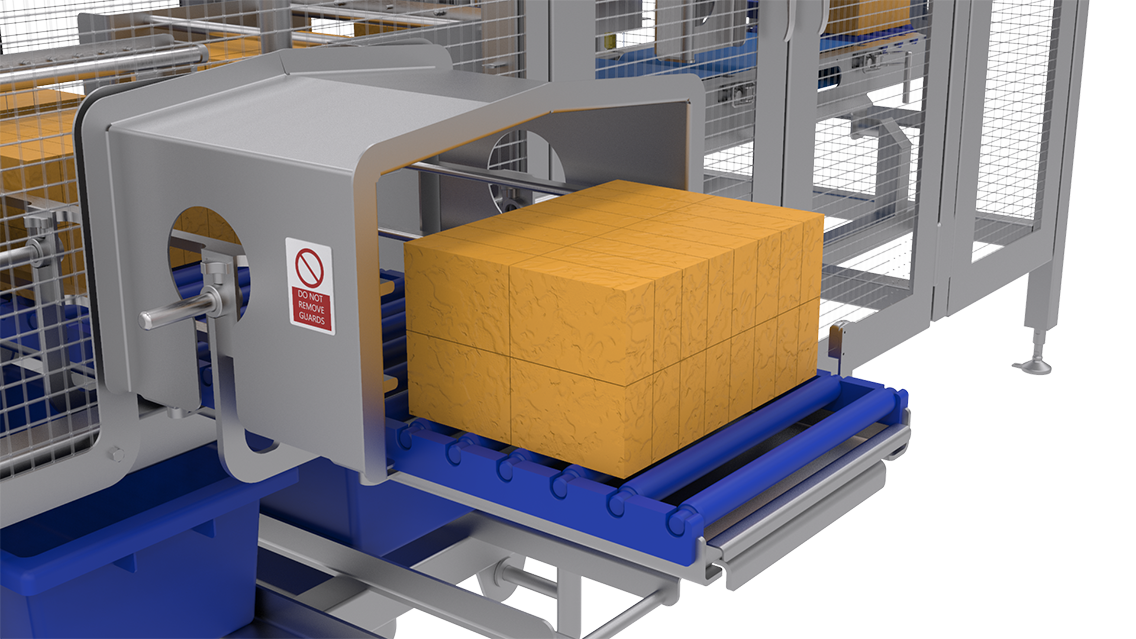

  • EC25 DETAIL SMALL 2

The EC25 efficiently reduces blocks of cheese into fixed dimension portions.  The operator positions blocks of cheese against the backstop on the infeed belt.  The cheese advances into the cutting chamber when the machine is available.  Blocks are automatically centered for even cut distribution and then pushed through a quick-change wire cutting harp.  The auto height halving mechanism also centers the horizontal wire.  Cut blocks are discharged onto a roller bed.

  • Block centralizing for consistent loaves
  • Automatic height halving
  • Simple automatic operation
  • Quick change cutting sets
  • Integrated trim collection
  • Hygienic design construction

Cycles per Minute: Up to 4.5 blocks per minute

Nominal Block Capacity: 20kg/40# eith narrow or wide edge leading;  Euro block narrow edge leading only

Pneumatic: 452 l/min @ 6 bar / 16 SCFM @ 90 psi

Block Auto Height Halving: Yes

Number of Cut Stages: 2

Cycle Start:  Automatic with infeed conveyor

Electrical: 415 – 575 VAC

Block Auto-Centering: Yes

Actuator Power: Pneumatic;  Servo optional
